# DeviationSentinel

## DeviationSentinel

The DeviationSentinel is a Venus periphery contract that monitors price deviations between the ResilientOracle and a DEX-based SentinelOracle. When deviations exceed configured thresholds, it routes emergency actions through the [EBrake](https://docs-v4.venus.io/technical-reference/reference-periphery/ebrake) contract to pause market actions and zero collateral factors, protecting the protocol from price manipulation or oracle failures.

### Overview

Price oracle reliability is critical for lending protocols. A compromised or malfunctioning oracle can lead to undercollateralized borrows or improper liquidations. The DeviationSentinel mitigates this risk by continuously comparing prices from two independent sources and taking protective action when they diverge beyond acceptable limits.

The system consists of five contracts:

| Contract            | Description                                                          |
| ------------------- | -------------------------------------------------------------------- |
| `DeviationSentinel` | Detects price deviations and routes emergency actions through EBrake |
| `EBrake`            | Executes emergency actions (pauses, CF decrease) on the Comptroller  |
| `SentinelOracle`    | Aggregator oracle routing to DEX oracles or direct prices            |
| `UniswapOracle`     | Fetches prices from Uniswap V3 pools                                 |
| `PancakeSwapOracle` | Fetches prices from PancakeSwap V3 pools                             |

#### Economic Rationale

The deviation response logic is designed to counter specific attack vectors that arise when oracle prices diverge from real market prices.

**When DEX Price > Oracle Price (borrow attack):**

1. Attacker deposits an asset (e.g., BNB) as collateral
2. Borrows the mispriced token at its undervalued oracle price
3. Sells the borrowed token on DEX at the higher DEX price
4. Repeats until protocol liquidity is drained

**Action:** Pause borrowing for the affected asset.

**When DEX Price < Oracle Price (collateral attack):**

1. Attacker deposits the mispriced token as collateral, valued at the higher oracle price
2. Borrows other assets up to the loan-to-value limit
3. Sells or hedges the collateral token at the lower DEX price
4. Walks away with profit if the protocol later realigns, leaving bad debt

**Action:** Set collateral factor to 0 and pause supply for the affected asset.

Pauses trigger only for large price deviations (e.g., 15%-50%), not for minor discrepancies (1%-10%), to avoid unnecessary interruptions from normal pool volatility. Small deviations are not economically viable for attackers.

#### Deviation Response Logic

When a deviation is detected, the response depends on the direction:

| Condition                     | Action                                             | Rationale                                          |
| ----------------------------- | -------------------------------------------------- | -------------------------------------------------- |
| Sentinel price > Oracle price | Pause borrowing via EBrake                         | Prevents borrowing out undervalued assets          |
| Sentinel price ≤ Oracle price | Zero collateral factor and pause supply via EBrake | Prevents supplying overvalued assets as collateral |

DeviationSentinel can only tighten restrictions. Recovery (unpausing, restoring collateral factors) is handled exclusively via a governance VIP, which calls the corresponding EBrake snapshot reset functions after restoring Comptroller parameters.

#### Off-Chain Monitoring

An off-chain monitoring service continuously compares the ResilientOracle price with on-chain swap prices from PancakeSwap and Uniswap. When the deviation exceeds a configured threshold, the monitor calls `handleDeviation` via a trusted keeper address, which routes the emergency action through EBrake to pause the affected market.

The on-chain contract includes its own price validation checks to protect against false pauses caused by compromised or faulty off-chain monitors. Once the incident is resolved, a governance VIP restores all parameters on the Comptroller and calls the EBrake snapshot reset functions to prepare for future incidents.

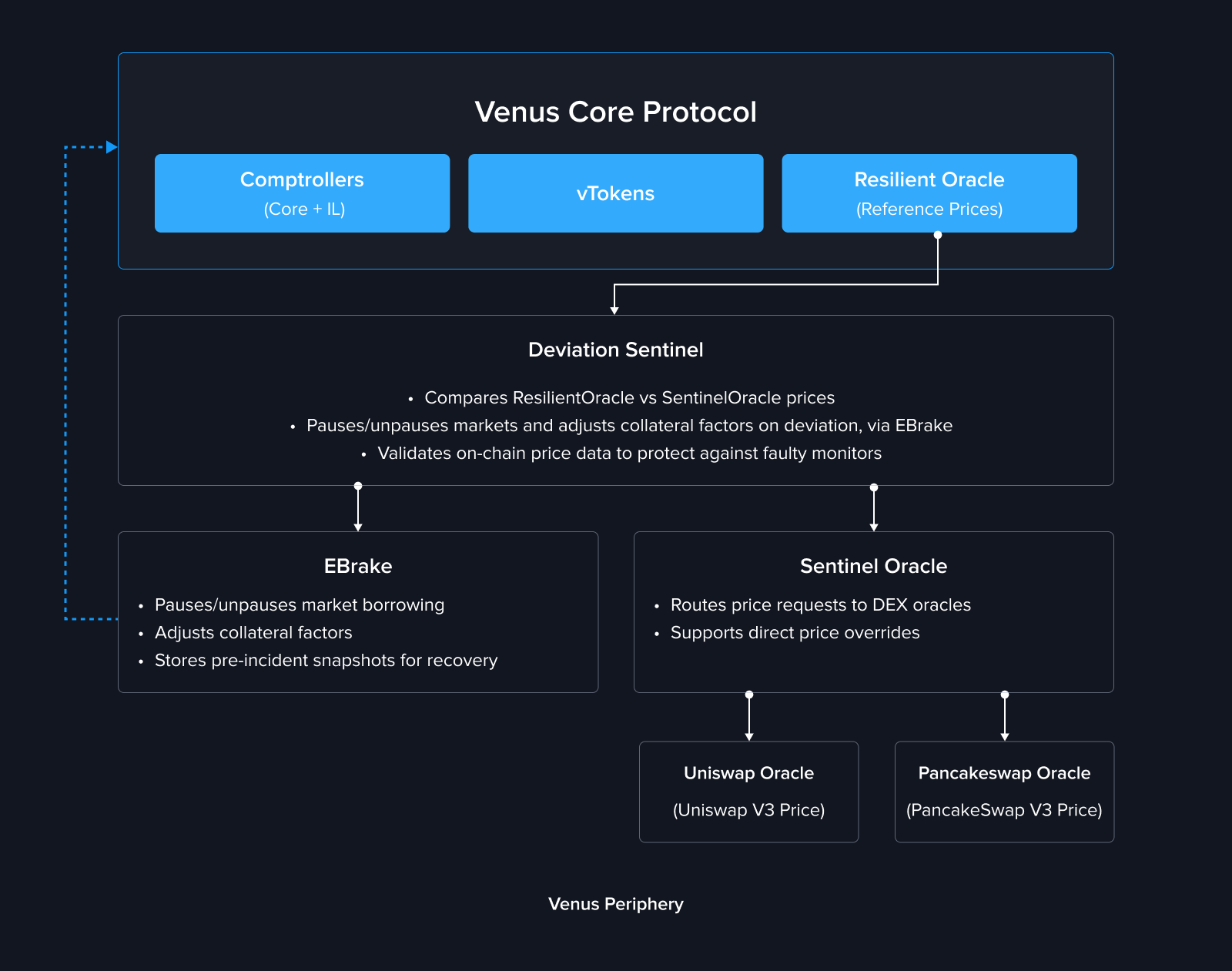

### Architecture

<figure><img src="https://1811016925-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FSfxZmzf9N5T5Npv859XY%2Fuploads%2Fgit-blob-077a1f465915a98ed2b0318901cd87f26ed5ed8c%2Femergency_brake.png?alt=media" alt="DeviationSentinel Architecture"><figcaption></figcaption></figure>

### Inheritance

#### DeviationSentinel

* `AccessControlledV8` - Governance-controlled access

#### SentinelOracle

* `AccessControlledV8` - Governance-controlled access

#### UniswapOracle / PancakeSwapOracle

* `AccessControlledV8` - Governance-controlled access

### State Variables

#### DeviationSentinel

**Immutable**

| Variable           | Type                       | Description                                                      |
| ------------------ | -------------------------- | ---------------------------------------------------------------- |
| `EBRAKE`           | `IEBrake`                  | EBrake contract through which all emergency actions are executed |
| `RESILIENT_ORACLE` | `ResilientOracleInterface` | Primary oracle for reference prices                              |
| `SENTINEL_ORACLE`  | `OracleInterface`          | DEX-based oracle for comparison prices                           |

**Mutable**

| Variable         | Type                                  | Description                                      |
| ---------------- | ------------------------------------- | ------------------------------------------------ |
| `tokenConfigs`   | `mapping(address => DeviationConfig)` | Deviation threshold and enabled status per token |
| `trustedKeepers` | `mapping(address => bool)`            | Addresses authorized to call `handleDeviation`   |

**Constants**

| Constant        | Value | Description                           |
| --------------- | ----- | ------------------------------------- |
| `MAX_DEVIATION` | 100   | Maximum configurable deviation (100%) |

#### SentinelOracle

| Variable       | Type                              | Description                                     |
| -------------- | --------------------------------- | ----------------------------------------------- |
| `tokenConfigs` | `mapping(address => TokenConfig)` | Maps tokens to their DEX oracle address         |
| `directPrices` | `mapping(address => uint256)`     | Direct price overrides (0 means use DEX oracle) |

#### UniswapOracle / PancakeSwapOracle

| Variable           | Type                          | Description                               |
| ------------------ | ----------------------------- | ----------------------------------------- |
| `RESILIENT_ORACLE` | `ResilientOracleInterface`    | Immutable reference for pair token prices |
| `tokenPools`       | `mapping(address => address)` | Maps tokens to their DEX pool address     |

### Structs

#### DeviationConfig

```solidity
struct DeviationConfig {
    uint8 deviation;   // Maximum allowed deviation percentage (1-100)
    bool enabled;      // Whether monitoring is active for this token
}
```

#### DeviationAction

```solidity
enum DeviationAction {
    BorrowPaused,            // Triggered when sentinel price > oracle price
    SupplyPausedAndCFZeroed  // Triggered when sentinel price <= oracle price
}
```

#### TokenConfig (SentinelOracle)

```solidity
struct TokenConfig {
    address oracle;  // DEX oracle contract address
}
```

## Solidity API

### DeviationSentinel

#### handleDeviation

Checks for price deviation on a market and takes protective action. This is the core function called by trusted keepers.

```solidity
function handleDeviation(IVToken market) external
```

**Parameters**

| Name   | Type    | Description                           |
| ------ | ------- | ------------------------------------- |
| market | IVToken | The vToken market to check and act on |

**Behavior**

1. Retrieves the underlying token and its deviation config
2. Calls `checkPriceDeviation` to compare oracle prices
3. Returns early if no deviation is detected (prices within configured threshold)
4. If deviation detected:
   * If sentinel price > oracle price: calls `EBRAKE.pauseBorrow(market)`
   * If sentinel price ≤ oracle price: calls `EBRAKE.decreaseCF(market, 0)` then `EBRAKE.pauseSupply(market)`
5. Emits `DeviationHandled` with the prices and the action taken

Idempotency is handled by EBrake — duplicate calls for an already-paused market are no-ops on the EBrake side.

**Access Requirements**

* Caller must be a trusted keeper

**Errors**

* `UnauthorizedKeeper` if caller is not a trusted keeper
* `MarketNotConfigured` if token has no deviation config
* `TokenMonitoringDisabled` if monitoring is disabled for the token

***

#### checkPriceDeviation

View function that checks whether a market's underlying token has a price deviation exceeding its configured threshold.

```solidity
function checkPriceDeviation(
    IVToken market
) public view returns (
    bool hasDeviation,
    uint256 oraclePrice,
    uint256 sentinelPrice,
    uint256 deviationPercent
)
```

**Parameters**

| Name   | Type    | Description                |
| ------ | ------- | -------------------------- |
| market | IVToken | The vToken market to check |

**Return Values**

| Name             | Type    | Description                                        |
| ---------------- | ------- | -------------------------------------------------- |
| hasDeviation     | bool    | True if deviation exceeds the configured threshold |
| oraclePrice      | uint256 | Price from the ResilientOracle                     |
| sentinelPrice    | uint256 | Price from the SentinelOracle                      |
| deviationPercent | uint256 | Calculated deviation as a percentage               |

**Deviation Calculation**

```
deviationPercent = (|oraclePrice - sentinelPrice| / oraclePrice) * 100
```

If either price is 0, the function sets `hasDeviation` to true and `deviationPercent` to `type(uint256).max`.

***

#### setTokenConfig

Configures deviation monitoring parameters for a token.

```solidity
function setTokenConfig(address token, DeviationConfig calldata config) external
```

**Parameters**

| Name   | Type            | Description                    |
| ------ | --------------- | ------------------------------ |
| token  | address         | The underlying token address   |
| config | DeviationConfig | Deviation threshold and status |

**Access Requirements**

* Governance only (via AccessControlManager)

**Errors**

* `ZeroAddress` if `token` is the zero address
* `ZeroDeviation` if `config.deviation` is 0
* `ExceedsMaxDeviation` if `config.deviation` exceeds 100

**Events**

* `TokenConfigUpdated` emitted on success

***

#### setTokenMonitoringEnabled

Enables or disables deviation monitoring for a previously configured token.

```solidity
function setTokenMonitoringEnabled(address token, bool enabled) external
```

**Parameters**

| Name    | Type    | Description                         |
| ------- | ------- | ----------------------------------- |
| token   | address | The underlying token address        |
| enabled | bool    | Whether monitoring should be active |

**Access Requirements**

* Governance only

**Errors**

* `ZeroAddress` if `token` is the zero address
* `MarketNotConfigured` if token has no existing config

**Events**

* `TokenMonitoringStatusChanged` emitted on success

***

#### setTrustedKeeper

Adds or removes an address from the trusted keepers list.

```solidity
function setTrustedKeeper(address keeper, bool isTrusted) external
```

**Parameters**

| Name      | Type    | Description                           |
| --------- | ------- | ------------------------------------- |
| keeper    | address | The keeper address                    |
| isTrusted | bool    | Whether the address should be trusted |

**Access Requirements**

* Governance only

**Errors**

* `ZeroAddress` if keeper is the zero address

**Events**

* `TrustedKeeperUpdated` emitted on success

***

#### resetMarketState

> **Removed.** This function no longer exists. Pre-incident state snapshots (CF, caps) are now tracked by EBrake. Use EBrake's `resetCFSnapshot`, `resetBorrowCapSnapshot`, and `resetSupplyCapSnapshot` functions in recovery VIPs instead.

***

### SentinelOracle

#### getPrice

Returns the price of an asset from the configured DEX oracle or a direct price override.

```solidity
function getPrice(address asset) external view returns (uint256)
```

**Parameters**

| Name  | Type    | Description       |
| ----- | ------- | ----------------- |
| asset | address | The token address |

**Return Values**

| Type    | Description                                 |
| ------- | ------------------------------------------- |
| uint256 | Asset price in (36 - asset decimals) format |

**Price Resolution Order**

1. If `directPrices[asset]` is non-zero, return it
2. Otherwise, fetch from the configured DEX oracle

**Errors**

* `TokenNotConfigured` if no oracle is configured and no direct price is set

***

#### setTokenOracleConfig

Associates a token with a DEX oracle for price fetching.

```solidity
function setTokenOracleConfig(address token, address oracle) external
```

**Parameters**

| Name   | Type    | Description                  |
| ------ | ------- | ---------------------------- |
| token  | address | The underlying token address |
| oracle | address | The DEX oracle address       |

**Access Requirements**

* Governance only

**Errors**

* `ZeroAddress` if either address is zero

**Events**

* `TokenOracleConfigUpdated` emitted on success

***

#### setDirectPrice

Sets a direct price override for a token. Set to 0 to revert to DEX oracle pricing.

```solidity
function setDirectPrice(address token, uint256 price) external
```

**Parameters**

| Name  | Type    | Description                              |
| ----- | ------- | ---------------------------------------- |
| token | address | The underlying token address             |
| price | uint256 | The price override (0 to use DEX oracle) |

**Access Requirements**

* Governance only

**Events**

* `DirectPriceUpdated` emitted on success

***

### UniswapOracle

#### getPrice

Returns the price of a token derived from its Uniswap V3 pool.

```solidity
function getPrice(address asset) external view returns (uint256)
```

**Parameters**

| Name  | Type    | Description       |
| ----- | ------- | ----------------- |
| asset | address | The token address |

**Return Values**

| Type    | Description                                 |
| ------- | ------------------------------------------- |
| uint256 | Asset price in (36 - asset decimals) format |

**Price Calculation**

1. Reads `sqrtPriceX96` from the Uniswap V3 pool's `slot0`
2. Computes `priceX96 = (sqrtPriceX96)² / Q96`
3. Determines target token position (token0 or token1)
4. Fetches the reference token price from ResilientOracle
5. Converts the pool ratio to a USD price using the reference price

**Errors**

* `TokenNotConfigured` if no pool is configured for the token
* `InvalidPool` if the configured pool does not contain the token

***

#### setPoolConfig

Associates a token with a Uniswap V3 pool.

```solidity
function setPoolConfig(address token, address pool) external
```

**Parameters**

| Name  | Type    | Description                  |
| ----- | ------- | ---------------------------- |
| token | address | The underlying token address |
| pool  | address | The Uniswap V3 pool address  |

**Access Requirements**

* Governance only

**Errors**

* `ZeroAddress` if either address is zero

**Events**

* `PoolConfigUpdated` emitted on success

***

### PancakeSwapOracle

#### getPrice

Returns the price of a token derived from its PancakeSwap V3 pool. Identical behavior to `UniswapOracle.getPrice`.

```solidity
function getPrice(address asset) external view returns (uint256)
```

***

#### setPoolConfig

Associates a token with a PancakeSwap V3 pool. Identical behavior to `UniswapOracle.setPoolConfig`.

```solidity
function setPoolConfig(address token, address pool) external
```

***

### Events

#### DeviationSentinel Events

| Event                          | Parameters                                 | Description                                                                 |
| ------------------------------ | ------------------------------------------ | --------------------------------------------------------------------------- |
| `TokenConfigUpdated`           | token, config                              | Deviation config set for a token                                            |
| `TokenMonitoringStatusChanged` | token, enabled                             | Monitoring toggled for a token                                              |
| `TrustedKeeperUpdated`         | keeper, isTrusted                          | Keeper added or removed                                                     |
| `DeviationHandled`             | market, oraclePrice, sentinelPrice, action | Deviation detected and acted on; `action` is a `DeviationAction` enum value |

Pause and collateral factor events are now emitted by EBrake (`ActionPaused`, `CollateralFactorDecreased`) rather than by DeviationSentinel directly.

#### SentinelOracle Events

| Event                      | Parameters    | Description                      |
| -------------------------- | ------------- | -------------------------------- |
| `TokenOracleConfigUpdated` | token, oracle | Token associated with DEX oracle |
| `DirectPriceUpdated`       | token, price  | Direct price override set        |

#### UniswapOracle / PancakeSwapOracle Events

| Event               | Parameters  | Description                    |
| ------------------- | ----------- | ------------------------------ |
| `PoolConfigUpdated` | token, pool | Token associated with DEX pool |

### Security Considerations

#### Access Control

* **Governance Functions**: All configuration functions (`setTokenConfig`, `setTrustedKeeper`, `setTokenMonitoringEnabled`) are restricted via `AccessControlManager`
* **Keeper Functions**: `handleDeviation` is restricted to trusted keepers via the `onlyKeeper` modifier
* **Direct Price Overrides**: The `setDirectPrice` function on `SentinelOracle` is governance-controlled to prevent price manipulation

#### Separation of Detection and Execution

DeviationSentinel contains only detection logic. All Comptroller interactions (pausing, CF changes) are executed by EBrake. This means:

* A compromised keeper can only trigger EBrake actions, not call the Comptroller directly
* EBrake enforces its own "tighten only" invariant independently — the sentinel cannot unpause or restore CF even if its logic were modified
* Pre-incident state snapshots (original CF, borrow caps, supply caps) are tracked by EBrake, not DeviationSentinel

#### Recovery

Recovery from a sentinel-triggered freeze requires a governance VIP that:

1. Restores Comptroller parameters (unpause actions, restore CF)
2. Calls the appropriate EBrake snapshot reset functions (`resetCFSnapshot`, `resetBorrowCapSnapshot`, `resetSupplyCapSnapshot`) to clear the stored snapshots

### Deployment

See [Deployed Contracts](https://docs-v4.venus.io/deployed-contracts/periphery) for current addresses.

### Audits

DeviationSentinel undergoes security audits before mainnet deployment. Audit reports are available in the [venus-periphery repository](https://github.com/VenusProtocol/venus-periphery/tree/main/audits).


---

# Agent Instructions: Querying This Documentation

If you need additional information that is not directly available in this page, you can query the documentation dynamically by asking a question.

Perform an HTTP GET request on the current page URL with the `ask` query parameter:

```
GET https://docs-v4.venus.io/technical-reference/reference-governance/deviation-sentinel.md?ask=<question>
```

The question should be specific, self-contained, and written in natural language.
The response will contain a direct answer to the question and relevant excerpts and sources from the documentation.

Use this mechanism when the answer is not explicitly present in the current page, you need clarification or additional context, or you want to retrieve related documentation sections.
